| 机械性能： |
| 耐久性： |
插拔最少500次 |
| 中心导体保持力： |
至少6磅 |
| 连接螺母保持力： |
至少100磅 |
| 结合/分离力： |
最大扭矩2.5in-lbs |
| |
最大轴向力3.0磅 |
| 接口尺寸： |
MIL-C-39012除75欧姆 |
| 环境指标： |
| 温度范围： |
-65C°至165°C |
| 耐湿度： |
0/95%，MIL-STD-202条款106 |
| 耐腐蚀： |
MIL-STD-202条款101 |
| |
试验条件B |
| 耐化学溶剂： |
MIL-STD-202条款215 |
 |
|
| 电气性能： |
| 特性阻抗： |
75欧姆 |
| 工作电压： |
500伏特（有效值） |

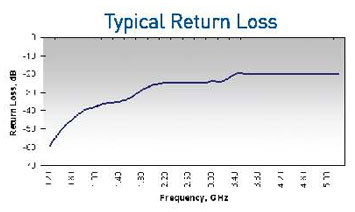

| 回波损耗： |
1GHz小于-36dB |
| |
2GHz小于-25dB |
| |
3GHz小于-23dB |
| |
5GHz小于-20dB |
| 接触电阻： |
中心端子：0.0014欧姆 |
| |
外导体：0.002欧姆 |
| 绝缘电阻： |
5000兆欧姆 |
| 镀层： |
| 本体/卡锁： |
镍 |
| 中心导体： |
铜上50μ-inch 金 |
 |
|

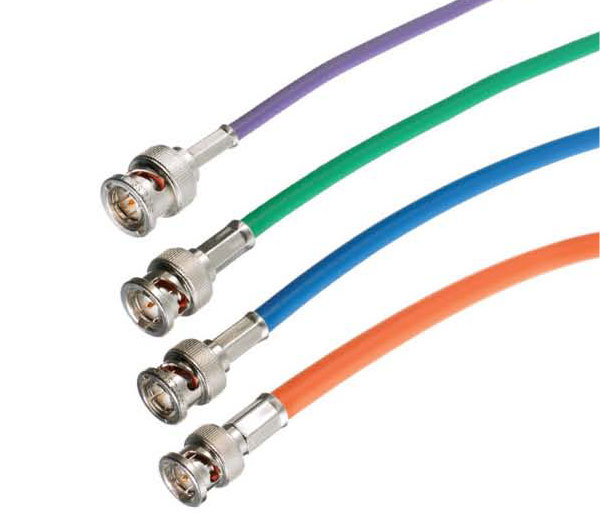

Plugs
KINGS®
Part No. |
FOR CABLES® |
CABLING |
Bulk
Packs
Avallable? |
| Belden |
West Penn/
CDT |
Gepce |
Others |
Crlmp Dle
(KTH-1000) |
Crlmp Dle
(KTH-5000) |
Trlm
Code |
| 2065-1-9 |
9209A |
|
|
|
KTH-2261 |
KTH-5003 |
3-661-1 |
|
| 2065-2-9 |
1505A
1506A
9259 |
819
25819
815 |
VPM2000
VPM2000TS
VE61859M |
|
KTH-2261 |
KTH-5003 |
3-661-1 |
YES |
| 2065-15-9 |
8281 |
P806 |
VP618PE
VP6000
VP618TK |
WE 724 |
KTH-2119 |
KTH-5002 |
3-661-4 |
|
| 2065-7-9 |
8241 |
|
VJ59U |
RG-59
RG-210 |
KTH-2261 |
KTH-5003 |
3-661-1 |
YES |
| 2065-8-9 |
7731A
8213 |
|
VHD1100 |
|
KTH-2004 |
KTH-5004 |
3-661-3 |
|
| 2065-10-9 |
1694A
1695A |
6350
256350
WP6355
|
VSD2001
VSD2001TS |
|
KTH-2325 |
KTH-5017 |
3-661-1 |
YES |
| 2065-11-9 |
1855A
1865A |
HD825
HD25825
WP8255
WP258255 |
VDM230
VDM250 |
|
KTH-2025 |
KTH-5003 |
3-661-1 |
YES |
| 2006-29-9 |
1279R
1279P |
|
|
|
KTH-2276 |
KTH-5001 |
3-661-1 |
YES |
| 2065-28-9 |
1520A
179DT |
|
|
RG-179
RG-187 |
KTH-2258 |
KTH-5001 |
3-661-1 |
YES |
 |
| Trim |
A |
B |
C |
| 3-661-1 |
.624 |
.312 |
.155 |
| 3-661-3 |
.687 |
.375 |
.187 |
| 3-661-4 |
.668 |
.356 |
.200 |
|
*Consult factory for cables not listed
Within Series Adapters
KINGS®
Part Number |
Adapter Ends |
Dimensions |
Mounting
Hole |
| A |
B |
| In |
mm |
In |
mm |
| 2029-9-9 |
Bulkhead,Jack-Jack |
1.28 |
32.5 |
0.69 D |
17.5 D |
A |
| 2029-15-9 |
Jack-Jack |
1.28 |
32.5 |
0.44 D |
11.2 D |
|
| 2029-16-9 |
Jack-Plug-Jack |
1.28 |
32.5 |
1.06 |
26.9 |
|
| 2029-17-9 |
Bulkhead,Jack-Jack,iso.ground |
1.28 |
32.5 |
0.63 D |
16.0 D |
A |
| 2029-20-9 |
Jack-Plug,Right Angle |
0.90 |
22.9 |
1.03 |
26.2 |
|
Terminations
KINGS®
Part Number
(True 75 Ohm) |
Dimensions |
Notes |
| A |
B |
| In |
mm |
In |
mm |
| 2555-3-32 |
1.00 |
25.4 |
0.57 D |
14.5 D |
75 ohm,0.1%,1/2 watt |
Note:
Connectors are designed for use on both analog and digital cable.Consult your cable manufacturer for cable performance data.
